5.25� Internal Card Reader With Multi-IO

Key Features:

*High integration with USB 2.0 adapter free Card Reader and multi media I/O ports, such as Firewire/USB/Microphone/Line-IN/Line-Out / E-SATA.

*Supports adapter free for all small form factor memory cards, such as mini SD, RS-MMC, Micro SD (T-flash), MS-Duo etc.

*Five card slots accept up to 30 types of memory cards.

*Usage from the front panel of your PC directly.

*Ideal for 5.25" drive bay installation.

*Both black and white front bezel are available.

Specification:

Five memory card slots:	CF/MD, SM/xD, SD/mini SD/MMC/RS-MMC, MS/MS-Duo, Micro SD,(T-Flash)
Four memory card icons:	SD/MMC/(Micro SD), Compact Flash I/II, Smart Media/xD, MS/MS Pro
Memory card supports:	CF (Type I & Type II), Micro Drive, Magic Gate , SM, SM ROM, xD, xD M-Type, xD H-Type SD, SD, mini SD, SD ROM, Micro SD(T-Flash), MMC-I, MMC-II, MMC 4.0, MMC Dual Voltage, MMC Plus, MMC Mobile, MMC Micro, RSHS-MMC, RS-MMC, RS-MMC Dual Voltage, RS-MMC 4.0, MS, MS Select, MS ROM, MS PRO, MS Magic Gate, MS-PRO Magic Gate, MS-DUO, MS-DUO Magic Gate, MS-PRO-DUO etc.
Indicator:	One indicator for card detected and data accessing.
Pass through ports:	Two USB 2.0 port One 6-pin IEEE 1394a port One Stereo Microphone jack One Stereo audio line-in jack One Stereo audio line-out /Earphone jack One E-SATA connector
Operating temperature:	0�C~50 �C
Stock temperature:	-20�C~60�C
*Dimensions (WDH):*	14515542 mm
Certification:	FCC Class B, CE, xD Picture Card
System Requirement:	Windows�2000, Windows�XP

Package content:

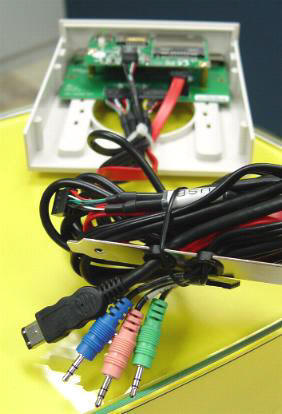

5.25�Internal Multi IO Card Reader

Setup disc with electronic manual

Mounting screws
