Technologies ... |
|
|
|
Highest pixels resolution up to
1.3M
|
|
Infrared pointer for night shot |
|
3 LED lights to give brighter visual contact
|
|
Bundled with Headset
 |
Specification
|
Camera Lens |
1/2�(1.3M) 12mm Lens,
Color CMOS Image Sensor |
|
Pixel |
SXGA Format 1280X1024(1.3M) |
|
Resolution |
1280X1024(SXGA),1024X768,640X480(VGA), 352X288(CIF) |
|
Frame per sec. |
Up to 15FPS@1280X1024、30fps@640X480 |
|
Capture Resolution |
Up to 1280X1024 |
|
Focus Distance |
3cm~infinity (SXGA) |
|
Brightness |
Auto-detect |
|
Exposed control |
Auto-detect |
|
Image format |
RGB24 |
|
Operated System |
Windows 98 / 2000 / ME / XP |
|
I/O Interface |
USB 2.0 |
|
Infrared light |
0~2m high power |
|
LED Light |
3 high bright white LED Light |
|
I. Sensor (MICROM
:
MT9M001 - 1/2-Inch Megapixel Digital Image Sensor)
|
 |
Features
|
� DigitalClarity�
CMOS Imaging Technology |
|
� Array Format (5:4): 1,280H x 1,024V (1,310,720 active
pixels). Total (incl. dark pixels): 1,312H x 1,048V
(1,374,976 pixels) |
|
� Frame Rate: 30 fps progressive scan; programmable |
|
� Shutter: Electronic Rolling Shutter (ERS) |
|
� Window Size: SXGA; programmable to any smaller format
(VGA, QVGA, CIF, QCIF, etc.) |
|
� Programmable Controls: Gain, frame rate, frame size |
Applications
|
� Digital still cameras |
|
� Digital video cameras |
|
� PC cameras |
General
Description
|
The Micron�
Imaging MT9M001 is an SXGA-format with a 1/2-inch CMOS
active-pixel digital image sensor.The active imaging pixel
array of 1,280H x 1,024V. It incorporates sophisticated
camera functions on-chip such as windowing, column and row
skip mode, and snapshot mode. It is programmable through a
simple two-wire serial interface.This megapixel CMOS image
sensor features Digital-Clarity�Micron�s breakthrough
low-noise CMOS imaging technology that achieves CCD image
quality (based on signal-to-noise ratio and low-light
sensitivity)while maintaining the inherent size, cost, and
integration advantages of CMOS. |
II. Controller (SONiX
Technology co.,LTD : SN9C201)
The
SN9C201 is a high speed USB 2.0 compliant video/audio single-chip
processor to pair with the resolution of VGA or 1.3M CMOS image
sensor. SN9C201 integrates a USB 2.0 controller, high-performance
microcontroller, color-processing engine, high-quality image CODEC
interface to provide up to 30fps VGA size or 15 fps 1.3 M size video
without compression in high speed mode.
Features
|
8 or
10 Bit CMOS image raw data input |
|
Up to
30fps@VGA or 10 ~ 15fps@1.3M for PC mode video
|
|
Provide individual R/G/B digital color gains control
|
|
Provide snapshot function |
|
Support lens correction and G1G2 filtering
|
|
Support pixel offset compensation |
|
Support VGA/1.3M CMOS sensor, Hynix 7131R, OmniVision,
Pixart 202, Micron 360/1300, Toshiba, � etc
|
|
Embedded two modes of AE calculation and report |
|
Built-in external EEPROM controller for customer V_ID, P_ID,
defect pixel compensation and streaming setting
|
|
Provide internal up to 26 various P_ID in default setting |
|
Provide hardware windowing, 1/2, 1/4 scaling function with
smooth filter |
|
Built-in gamma correction and white balance gain circuit
|
|
Support operation mode in image quality/frame rate selection |
|
USB
1.1/2.0 compliance and support suspend mode
|
|
USB 4
endpoints: control, isochronous read, bulk read and
interrupt read |
|
Support video data transfer either in USB isochronous or
bulk modes |
|
Up to
9 alternated setting for USB isochronous transfer of video
data |
|
12MHz
crystal and 3.3 volt only |
|
48
pins LQFP package |
|
Embedded hardware color DSP and JPEG baseline capability of
compression encoder |
|
No
external memory needed |
|
Support general purpose I/O control
|
|
|

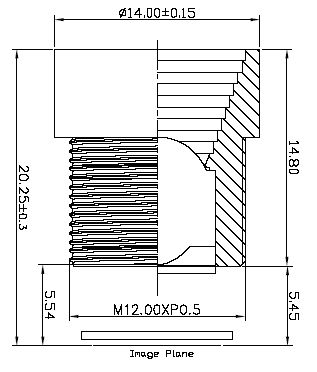

III. LENS (STAR OPTICAL Co., Ltd.)
 |
 |
|
IV.
System Requirements
|
Pentium III 900MHZ or Faster Processor |
|
One free USB Port |
|
128 MB RAM |
|
200 MB Hard Disk Drive Space Available |
|
CD-ROM (for driver installation) |
|
Operating System: Microsoft Windows 98SE, ME,
2000, XP / Mac to latest versions.
|
|
|
|
